Brief Introduction

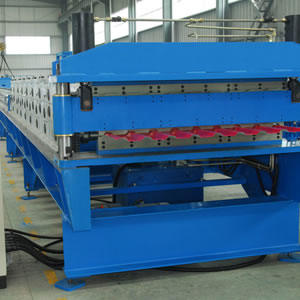

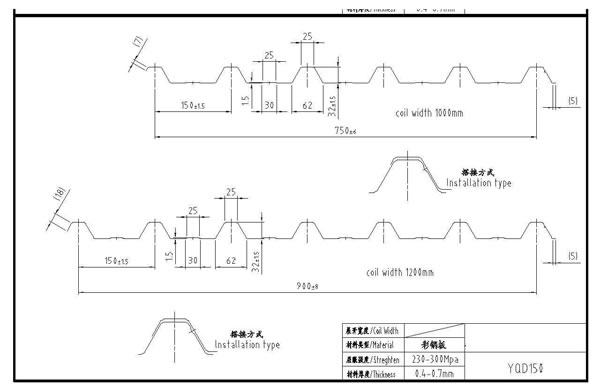

This double layer metal forming machine is a new type of energy-conserving and highly effective production facility for steel structure.
| Name | Model/Name | Quantity | Technical Description |
| 1.Decoiler system | Cantilever type automatic decoiler | 1set | The cantilever type decoiler system featured with the function of hydraulic expansion is controlled by ultrasonic. The release of sheet is driven by electrical motor. |
| 2.Main forming system | Guiding device | 1set | 1. Roller material: No.45 steel with hard chrome painted surface.2. Type of the inner supporting structure of roller: column guide3. The system is driven by a planetary gear speed reducer motor, the back/forward rollers are driven by chain, and part of the upper/lower rollers are driven by gear 4. Material of cutting blade: Cr12 (quenching treatment) |
| Roll forming system | 2sets | ||
| Post-cutting device | 1set | ||
| 3. Output system | Supporting Table | 1set | The system is used for supporting the finished panel. |
| 4. Hydraulic system | 1set | Hydraulic station | |
| 5. Electric control system | 1set | The system is installed with PLC Control and automatic encoder cutting.Operation method: button AC frequency is used for speed adjustment | |
| Item | Para | Note | |
| Suitable material | Type | Colored coating steel | |
| Thickness (mm) | 0.4-0.7 | ||
| Yield Strength (Mpa) | 230-300Mpa | ||
| Width (mm) | 1200mm | ||
| Weight of the Coil (t) | 8T | ||
| Outer Diameter | Φ1350mm | ||
| Inner Diameter | Φ508 mm/Φ610mm | ||
| Material of rollers | No.45 chrome plate | ||
| Forming Speed (m/min) | 20 | Cutting time is not included | |
| Power Source | AC380V ,50Hz, 3 Phase | Based on actual design | |
| Total power(kw) | About26 | Based on actual design | |
| Dimension (L×W×H, m) | See the layout | Based on actual design | |
Workflow
Decoiling→Sheet guiding→Roll forming→Post cutting→Product support
