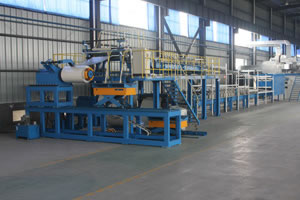

Sandwich Panel Line

Brief Introduction
Sandwich panel line is a type of integrated production line which includes a roll forming machine and a sandwich panel lamination system. Three types of panels, namely flat wall sandwich panel, push-in sandwich panel and corrugated sandwich panel are manufactured by this production line.

List of Components

5-Ton Mechanical Decoiler	1set
Sheet guarding equipment	1set
Film covering device	1set
Flat sheet cross pre-shearing device	1set
Roll forming system	1set
Post hydraulic-cutting equipment	1set
Supporting table	1set

Technical Parameters of Sandwich Panels

Cutting length	≥2 m
Width	Please see profile drawing
Thickness	Please see profile drawing

Technical Parameters of Raw Material

Sheet thickness	0.4-0.6mm
Yield strength	≤235Mpa
Max width of steel sheet	1200 mm (coil width accuracy ±2mm)
Inner diameter of coil	Φ500 and Φ600 mm
Outer diameter of coil	Φ1000 mm
Max. Weight of coil	5 Ton

Technical Parameters of EPS Block

Density	≥18kg/m3(Unstraightness for all sides ≤1mm/m, Curve ≤3mm/m,The surface of the EPS shall be even, Unevenness of the surface shall be less than 1.5mm/m, length of single piece of EPS shall be ≥3m.)
Core size of EPS	Please see profile drawing
Core width of EPS	The minimum width is 1/2 of the width of the sandwich panel

Technical Parameters of Sandwich Panel Line

Line speed	1000-3000mm/min (Frequency conversion control)
Line length	About 40 m
Working height	1050 mm (Panel's height)
Effective length of lamination	7.5 m
Control Mode	PLC frequency conversion control
Total electric power	About 35 KW
Control voltage	24 V/110 V/220 V
Air source	0.7 Mpa (prepared by customer)
Suitable working temperature	Around 25°C

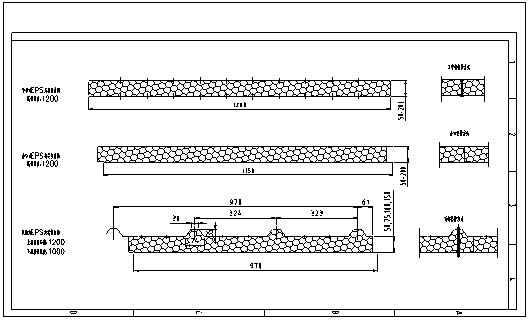

Profile Drawing

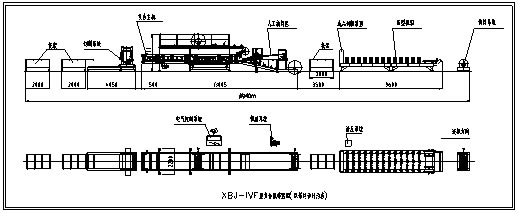

Layout Drawing

Workflow
Step-1 Roll Forming System
Loading of steel coil (put the steel coil into the decoiler)→Sheet guiding (steel sheet is guided into the first roller through the guiding equipment) → Pre-shearing →Roll forming of panels → Supporting table

Step-2 Sandwich Panel Laminating System
