Uprights Forming Machine

Storage Uprights Forming Machine

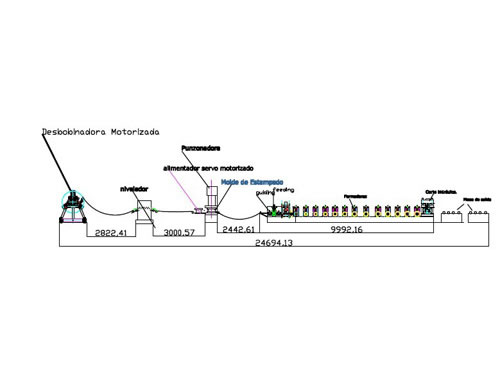

Technical parameters:

Motorized decoiler	≤3T
Leveling machine	5.5kw frequency change driving-motor, speed adjustable
servo motor feeder	Yakama Servo motor drive
Punching press	125tons Capacity made in Yangli Group in China

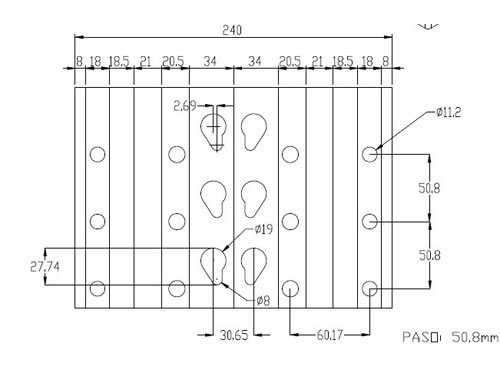

Punching mould	Cr12 Mov

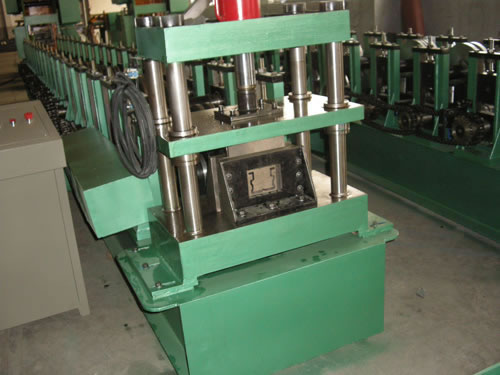

Main forming Machine unit	Cast iron stands, 16 forming stations, Rolled Thickness:1.5－2.5mm, ower:15kw
Hydraulic cutting of Storage Uprights Forming Machine	Cutting blade material Cr12
Roller material	Material GCr15,HCR58-62

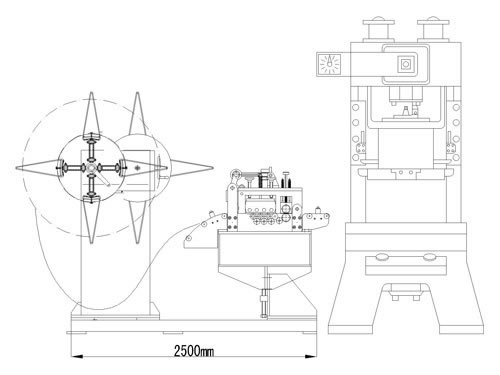

Technical data

of 3in 1 NC servo feeder, straightener and decoiler

Coil Weight:	1000 kg
Strip Width:	300mm
Thickness	1.5-2.5mm
Storage Uprights Forming Machine Coil O. D:	1200 mm
Coil I.D:	508mm
Feed length input	9999.99mm
Feed Speed:	15m/min
Feed accuracy	0.15mm
Storage Uprights Forming Machine Electrics:	380 Volts 50 Hz.
Working direction:	option
