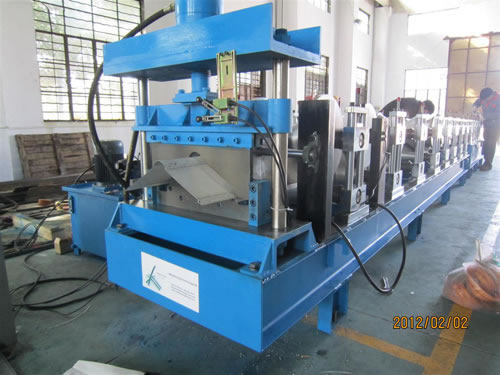

Ridge Cap Machine
Technical parameter Ridge Cap Forming Machine:
Main power: 5.5 motor made in China

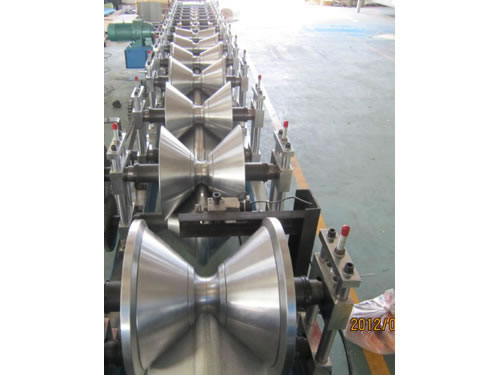

Roller station: 13 stations
Size of machine: approx 6.5m×1.0m×1.4m
Rolling speed: 12--15m/min (not including the cutting)c
Ridge Cap Forming Machine Shaft diameter: ф70mm
Hydraulic power: 3KW
Working pressure of ridge cap forming machine: 12Mpa
Material of cutting blade:Cr12, quenched 58-62
Sheet thickness : 0.3-0.8mm

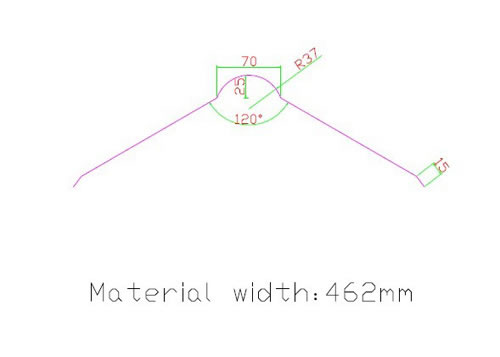

Ridge Cap Forming Machine Coil feed width: 462mm
Material of roller: 45#forge steel
No abrading on the surface
Ridge Cap Forming Machine Computer: PLC, Panasonic
The computer is LCD touched-screen
The film covering unit only for top side on the ridge profile
Components:
5T manual decoiler
Top side film covering unit
Roll forming machine
Hydraulic station
PLC cabinet
Hydraulic shear

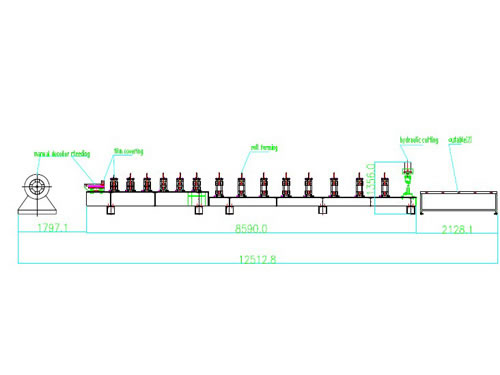

Flow chart of Ridge Cap Forming Machine:
Decoiler→feeding→film covering→forming→cutting product
Wuxi Hai Roll Fone Science & Technology Co.,Ltd is a professional manufacturer and supplier of ridge cap forming machine, slitting line, cut to length line machine and related metal sheet processing equipment in China. The ridge cap forming machines are mainly used in the construction industry, automobile manufacturing, machine manufacturing, electronics industry and many other areas. The products have been sold to the United States, South Africa, Portugal, Indonesia and other countries.
