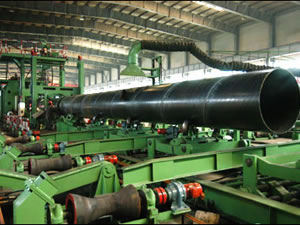

API pipe production line is designed to produce welded pipes with O.D. 219-508mm and thickness 6.0-18mm, as well as corresponding square and rectangular pipes. Our API pipe production lines feature rational design, stable performance, ease to operate and long life-span.
Working flow
Uncoiling→ flattening →shear and butt welding → cage accumulator → strip→ trimming → roll forming →high frequency welding → removing burrs(inside and outside) → I.F. annealing→ air and water cooling → sizing → pipe ultrasonic detect → flying saw→ flattening test→ end beveler → hydrostatic test→ conveying → downloading→ appearance → marking → packing → warehousing.
| Material | HR/CR Carbon steel coil(GBQ195-Q345/API X42-X80) |
| Width | 700-1700mm |
| Thickness | 6.0-18mm |
| Coil weight | 30 Ton |
| Pipe O.D. | 219-5084mm, Thickness: 6-18mm |
| Square tube | 170x170-400x400mm, thickness: 6.0-15mm |
| Length | 6-12m |
| Length tolerance | ±3mm |
| production speed | 10-30m/min |
| capacity | 60,000 tons/year |
| direction | left to right or right to left from operator's side(decided by customer) |
Roll Forming Machinery Company is professional API pipe production line manufacturer based in China. Our primarily products include all kinds of roll forming machines, double layer roll forming machines, stainless steel pipe forming mill, cut to length lines, slitting lines, stackers and filming machines, etc. They are widely used to process sheet metal, form ERW tubes, roof panels, shingle nails, glazed tiles, purlins, decks, downpipes, for metal roll forming in steel shelving systems and highway guardrail systems, and so on. In addition, we furnish services like training, installation and testing for our products.
If you are in need of metal forming equipment, we welcome you to contact us for further information at Roll Forming Machinery Company.
