Pipe Support Profile Roll Forming Machine
Roll Forming Machine Roll Forming Machine
Roll Forming Machine

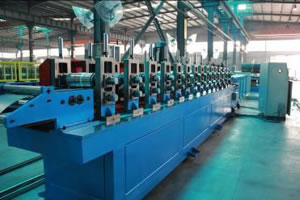

Pipe Support Profile Roll Forming Machine

Brief Introduction
The main roller former of this pipe support profile roll forming machine can manufacture 41mm×41mm and 41mm×21mm pipe support profile. When the profile needs to be changed, user merely needs to adjust some roller spacers and change some forming rollers.

List of Components
Motor decoiler1 set (decoiler capacity: 2 tons)
Leveler & Feeder1 set
Puncher1 set
Hydraulic Cutter2 sets
Main roll former1 set
Hydraulic Cutter1 set (flying cutter model)
Hydraulic station1 set
PLC control system1 set
Rack for final products1 set (total length is 6 meters)
Technical Parameters
Raw material Galvanized steel plate (yield strength: 235Mpa)
Coil width Based on final test data
Coil thickness1.8~2.0mm
Inner diameter of coil￠508±20mm
Outer diameter of coil≤￠1200mm
Coil max weight2 Tons
Working line speed12m/min (Cutting time is not included)
Length tolerance of each final product±2.0mm
Power source of roll forming line380V/50Hz/3 Phase

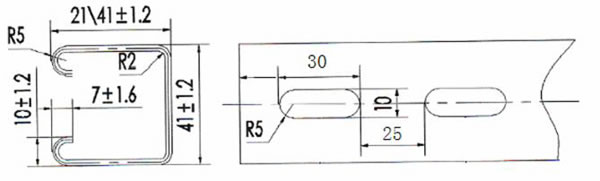

Profile Drawing
Roll Forming Machine

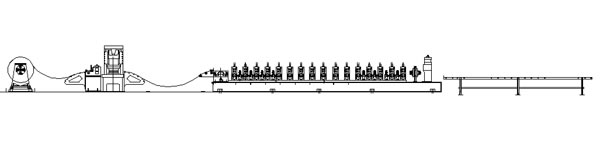

Layout Drawing
Roll Forming Machine

Workflow
Decoiling - leveling - feeding - punching - roll forming - cutting - final product
