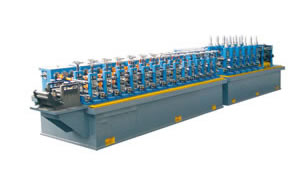

RF tube roll forming machine can be generally divided into five types, including RF150 type, RF200 type, RF250type, RF300 type and RF350 type, each with different milling width, milling thickness, milling speed and major motor power. The specific data for each category is directly shown in the table below.
Technical parameter of RF Tube Roll Forming Machine
| Description | RF series roll-forming machine | ||||
| RF150 | RF200 | RF250 | RF300 | RF350 | |
| Milling width | 50-150mm | 50-200mm | 50-250mm | 100-300mm | 100-350mm |
| Milling thickness | 0.5-1.2mm | 0.8-1.5mm | 1.0-2.0mm | 1.2-2.5mm | 1.5-3.5mm |
| Milling speed | 5-25M/min | 5-25M/min | 5-20M/min | 5-20M/min | 5-15M/min |
| Power of major motor | 22KW | 30KW | 37KW | 45KW | 75KW |
Basic components of RF Tube Roll Forming Machine
Uncoiler → Shearing and butt-welder → Forming machine → Computer cutting saw → Run-out table
