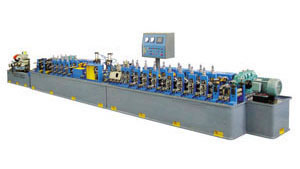

RF series high-precision stainless steel tube mill line can be generally divided into three types, including RF20 type, RF40 type and RF60 type, each with different specifications. RF20 precision stainless steel tube mill line can produce welded tubes with a diameter ofΦ8-25.4mm and a wall thickness of 0.5-1.0mm. The tube welding varies in speed, ranging from 0.5M to 8M per minute. This precision stainless steel tube mill line is also equipped with an Ar-arc welder of 400A current intensity. In addition, the specifications of RF40 and RF60 precision stainless steel tube mill line can be directly found in the table below.
Technical parameter of High Precision Stainless Steel Tube Mill Line| Description | RF series high-precision stainless steel tube mill line | ||
| RF20 | RF40 | RF60 | |
| Diameter of welded tubes | Φ8-25.4mm | Φ25.4-50.8mm | Φ38.1-76.2mm |
| Wall thickness of welded tubes | 0.5-1.0mm | 0.8-2.0 | 1.0-3.0 |
| Speed of tube welding | 0.5-8M/min | 0.5-6M/min | 0.5-4M/min |
| Ar-arc welder | 400A | 600A | 600A |
Process flow of High Precision Stainless Steel Tube Mill Line
Uncoiler → Shearing and butt-welder → Forming unit → Welding unit → Polishing unit → Rough sizing unit → annealing(Prepared by customer) → Traction precision sizing unit → Fixed length rotary-cutting saw → Run-out table
