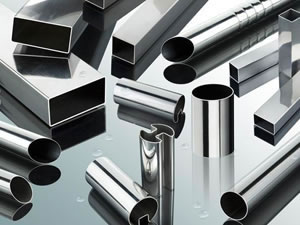

Stainless steel pipe forming mill is mainly used to manufacture a variety shapes of stainless steel pipes, like round, square, rectangular and more. Our stainless steel tube forming mill features stable performance, compact structure, high quality and long life-span.
Working flow of Stainless Steel Pipe Forming Mill
Raw material (steel coil) → uncoiling → shearing and end welding→ leveling→ roll forming →TIG welding→ Polishing burrs → cooling → sizing → roughly straightening → fixed length cutting → finished pipe → run-out table
| 1. Suitable Material | SUS304, SUS306, SUS316 stainless steel strip. |
| 2. The thickness of steel strip | 0.9-3.5mm (As per GB708-88) |
| 3. The width of steel strip | 60-240mm(±0.2mm) |
| 4. I.D. of steel coil | Φ450-Φ550mm |
| 5. O.D. of steel coil | Φ800-Φ1200mm |
| 6. Maximum weight coil | 1800kgs |
| 1. Dimension range of processing steel pipe | O.D. Φ19-Φ76mm |
| 2. Wall thickness | 0.9-3.5mm(Square and rectangle pipe≤2.0mm ) |
| 3. Length | 4-8m |
| 1. Milling speed | 1-5M/min |
| 2. Product precision | maximum tolerance of diameter±0.15mm |
| 3. Ar-arc welder | 600A |
| 4. Mechanical equipment site | 40M ×4M (length × width) |
| 5. Total electrical power | 50KW |
Roll Forming Machinery Company is professional China-based stainless steel pipe forming mill manufacturer. With nearly 20 years experience in producing roll forming machines, we mainly produce roof tile forming machines, floor deck forming machines, downspout roll forming machines, guardrail forming machines, double layer roll forming machines, steel pipe welding lines, stainless steel pipe forming mill, slitting lines and filming machines, etc. These products all have been CE certified, and exprted to Middle East, Africa, Europe, North America and South America, and other countries and regions.
We welcome you to try our metal forming machines, or other products. For purchase, please contact us at Roll Forming Machinery Company.
