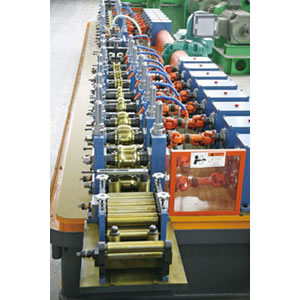

RF16 tube mill line is widely used to produce welded tubes with a diameter ofΦ8-25mm and a wall thickness of 0.3-1.0mm. The tube welding varies in speed, ranging from 50M to 100M per minute. This tube mill line is also equipped with 22KW major motor and 60KW welder with high frequency.
Technical parameter of RF16 Tube Mill Line
| Description | RF16 tube mill line |
| Diameter of welded tubes | Φ8-25mm |
| Wall thickness of welded tubes | 0.3-1.0mm |
| Speed of tube welding | 50-100M/min |
| Power of major motor | 22KW |
| Power of high frequency welder | 60KW |
Basic components of RF16 Tube Mill Line
Uncoiler → Shearing and butt-welder → Vertical-type accumulator → Forming, welding, sizing machine → Computer cutting saw → Run-out table
