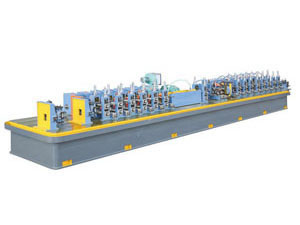

RF32 tube mill line is widely used to produce welded tubes with a diameter of Φ13-50.8mm and a wall thickness of 0.6-2.0mm. The tube welding varies in speed, ranging from 50M to 90M per minute. This tube mill line is also equipped with 90KW major motor and 100KW welder with high frequency.
Technical parameter of RF32 Tube Mill Line| Description | RF32 tube mill line |
| Diameter of welded tubes | Φ13-50.8mm |
| Wall thickness of welded tubes | 0.6-2.0mm |
| Speed of tube welding | 50-90M/min |
| Power of major motor | 90KW |
| Power of high frequency welder | 100KW |
Basic components of RF32 Tube Mill Line
Uncoiler→ Shearing and butt-welder → Vertical-type accumulator → Forming, welding, sizing machine (Including 2 sets of Turkey’s head straightening device) → Computer cutting saw → Run-out table
