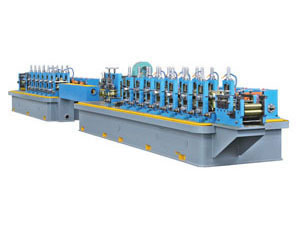

RF50 tube mill line is widely used to produce welded tubes with a diameter of Φ15-63.5mm and a wall thickness of 0.8-2.5mm. The tube welding varies in speed, ranging from 40M to 80M per minute. This tube mill line is also equipped with 110KW major motor and 150KW welder with high frequency.
Technical parameter of RF50 Tube Mill Line| Description | RF50 tube mill line |
| Diameter of welded tubes | Φ15-63.5mm |
| Wall thickness of welded tubes | 0.8-2.5mm |
| Speed of tube welding | 40-80M/min |
| Power of major motor | 110KW |
| Power of high frequency welder | 150KW |
Basic components of RF50 Tube Mill Line
Hydraulic uncoiler → Shearing and butt-welder → Horizontal-type accumulator → Forming machine → Water cooling tank → Sizing machine → Cold saw → Run-out table
