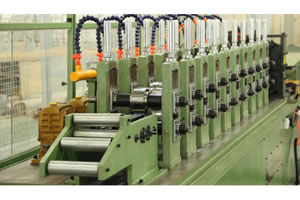

Brief Introduction
AC motor, reduction box, high-precision linear motion ball guide, left and right drive system, crosswise adjustment mechanism, rollers and gear which drives cantilevers are installed in this refrigerator panel roll forming machine. After sheet cutting, the sheet goes through the roller station one by one for roll forming, after which the sheet becomes plate. This machine can adjust the width of plate quickly.

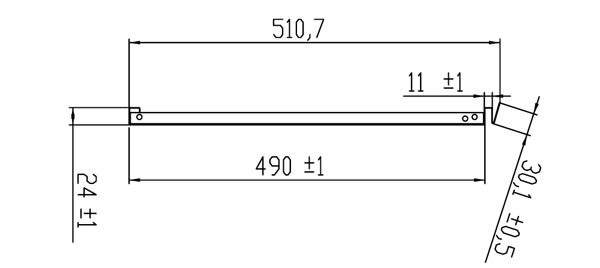

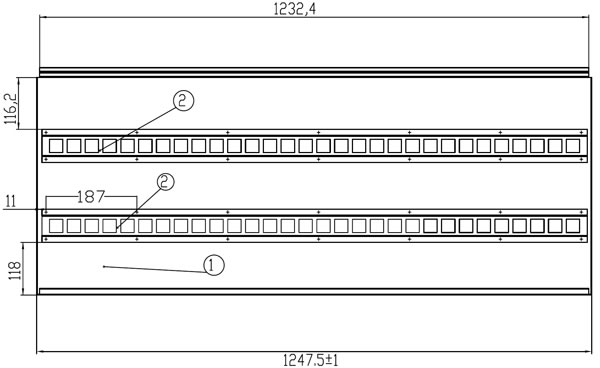

| De-coiler | 1set |
| Leveling Device | 1set |
| Guiding Device | 1set |
| Servo Feeding | 1set |
| Punching Device | 1set |
| Hydraulic Cutting | 1set |
| Roll-gang | 1set |
| Roll Former (Cantilever forming model) | 1set |
| Plate End Bending Device | 1set |
| Un-powered Support Table | 1set |
| Hydraulic Drive System | 1set |
| Electric Control System | 1set |
| Raw Material | Cold-Rolled Steel, Galvanized Steel |
| Yield Strength | 235Mpa |
| Thickness | 0.8-1.0mm |
| Coil Width | Based on final design |
| Plate Length | 3000mm |
| Coil Inner Diameter | Φ508±20mm |
| Coil Outer Diameter | ≤Φ1200mm |
| Coil Weight | ≤ 3 Tons |
| Roll Forming Speed | 10M/min (Cutting time is not included) |
| Length Tolerance | ±2mm |
| Power Source | 380V±10%, 50-60Hz (Based on buyer's request) |

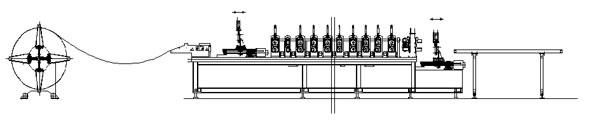

Workflow
Decoiling → Leveling → Guiding →Feeding → Punching → Cutting → Roll gang → Guiding → Roll Forming → Bending of plate end→ Plate
