Brief Introduction

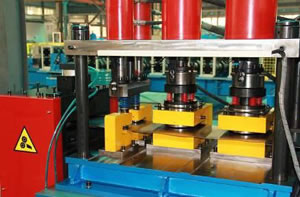

Servo feeder, hydraulic puncher and high speed saw cutter are installed at the base plate of this aluminum profile punch and cut forming machine. The welded steel base plate is stronger and reliable for all types of work.
| Manual feeding rack | 1 set (1 m) |
| Servo feeder | 1 set |
| Hydraulic puncher | 1 set |
| High speed saw blade | 1 set |
| Hydraulic system | 1 set |
| PLC control system | 1 set |
| Rack for final products | 1set (total length is 3 meters) |

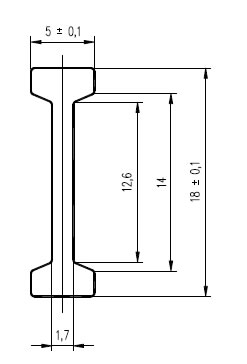

| Profile material | Aluminum steel |
| The width tolerance of profile | -0.2mm |
| Working line speed | About 2m/min |
| length tolerance of each final product | ±0.5mm |
| Power source of roll forming line | 380V/50Hz/3 Phase |
Workflow

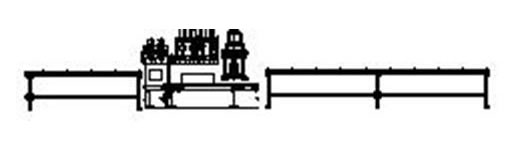

Feeding-Punching-Cutting-Final products-A layout drawing of simple production line
