Description

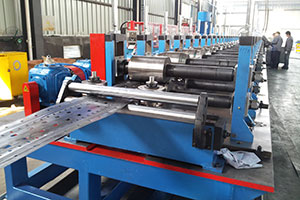

This machine is used to produce the rack pallets or posts which are for market, warehouse and logistics. We adopt professional team and advanced technology to design and manufacture this machine. The roll forming machine works in high efficiency mode and requires a very low cost.
| NO. | Name | Parameter | Remarks |
| 1 | Raw material | Q235 hot rolled | |
| 2 | Yield strength | 235Mpa | |
| 3 | Thickness | Depends on requirement | |
| 4 | Material width | 490-760mm | |
| 5 | Coil I.D. | Ф508±10mm | |
| 6 | Coil O.D. | ≤Ф1300mm | |
| 7 | Coil weight | ≤3T | |
| 8 | Producing speed | About 10m/min. | Excluding cutting time |
| 9 | Tolerance | ±2mm | |
| 10 | Voltage | 380/440V, 50/60Hz | Depends on clients' requirement |
Working Process
Decoiling → Levelling → Loop → Servo feeding → Punching → Loop → Roll forming → Straightening → Cutting to length → Run-out table
