Filter Frame Roll Forming Machine
Roll Forming Machine Roll Forming Machine Roll Forming Machine
Roll Forming Machine

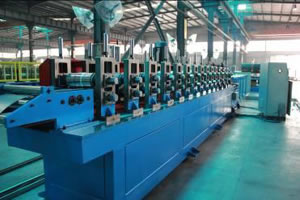

Filter Frame Roll Forming Machine

Brief Introduction
The cutting model of this filter frame roll forming machine is flying cut with a continuous cutting style. After the cutting, there is no waste piece left.

List of Components
Manual decoiler&leveler1 set (decoiler capacity:3 tons)
Servo feeding device1 set
Multi-station puncher1 set
Material loop2 sets
Main roll former1 set
Hydraulic Cutter1 set (flying cutter model)
Hydraulic station1set
PLC control system1 set
Rack for final products1set (total length is 3 meters)
Technical Parameters
Raw material Galvanized steel plate (yield strength: 235Mpa)
Coil width Based on final test data
Coil thickness0.6mm
Inner diameter of coil￠508mm
Outer diameter of coil≤￠1300mm
Max weight of coil1.5 Tons
Working line speed10M/MIN
Power source of Roll forming line 380V/50Hz/3 Phase

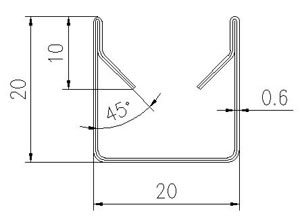

Profile Drawing
Roll Forming Machine

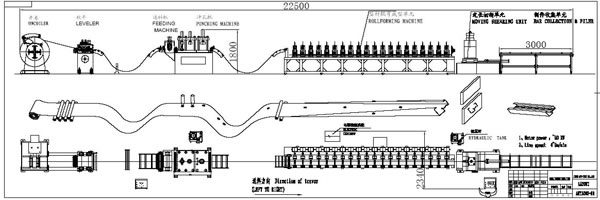

Layout Drawing
Roll Forming Machine

Workflow
Decoiling - leveling - looping of material - feeding-punching - looping of material - roll forming - cutting - final products
