Description

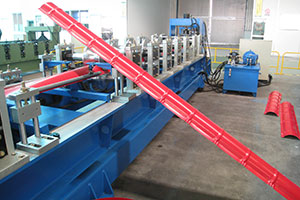

The roll forming machine is specially designed for continuous rolling and cold forming on steel sheets. It adopts steel coils as the raw material which will then undergo decoiling, continuous rolling, cold forming, automatic cut-to-size and discharging procedures to form the final panels.
This equipment adopts PLC control, AC frequency and speed adjustment technology to realize the continuous automatic production. It is a new type of energy-saving and highly effective production equipment for steel structures.
| NO | Item | Para | Remark | |
| 1 | Suitable material | Type | Colored steel sheet | |
| Thickness (mm) | 0.4-0.6 | |||
| Yield strength (MPA) | 230-300Mpa | |||
| Width (mm) | 395 | |||
| Wt. of the coil (t) | 3 | |||
| OD | Φ1350mm | |||
| ID | Φ508mm/Φ610mm | |||
| 2 | Material of rollers | No.45 chrome plate | ||
| 3 | Forming speed (m/min.) | 15-20 | Not including cutting time | |
| 4 | Power source | AC44V, 60 Hz, 3 Phases | Will be according to actual design | |
| 5 | Total power | About 8KW | Will be according to actual design | |
Working Process
Decoiling → Feeding table → Roll forming → Punching → Cutting to length → Discharging the finished products
