Description

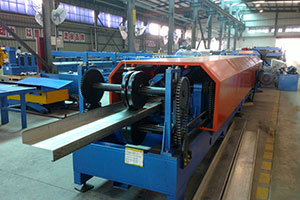

The C/Z purlin roll forming machine can produce both C and Z purlins with different specifications in one machine. The change from C to Z will be done by simple manual adjustment. There is no need to change the rollers if they are used for producing different sizes of C or Z purlins. These purlins can be automatically cut to length, punched and formed. Workers just need to input the length, hole distance, quantity and other parameters into the control system.
The adjustment of our machine that is used for producing different C purlins or Z purlins will be completely different from that of the traditional purlin machine (by manually adjusting the roll spacers). It just needs to adjust the screw bar and you can get different sizes of C and Z purlins.
The whole machine is inverter-controlled and driven by an electric motor. This will ensure the high precision of products.
| NO. | Name | Parameter |
| 1 | Raw material | GI/Colored steel sheet |
| 2 | Yield strength | ≤350Mpa |
| 3 | Thickness | 1.5-3.0mm |
| 4 | Material width | 100-300mm |
| 5 | Height | 40-120mm |
| 6 | Hole size | 50-250mm |
| 7 | Panel length | >3m |
| 8 | Forming speed | About 20m/min |
Working Process
Decoiling → Panel guiding → Panel leveling → Punching → Cutting to length → Roll forming → Panel run-out table
