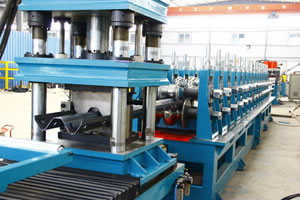

Guardrail roll forming machine is mainly used to produce crash barrier or guardrail on highway that can prevent vehicles from flying away the roadway. Our guardrail roll forming equipment is composed of hydraulic decoiler with breaking device, peeler table and pressure pad, leveler, entry looping pit, servo roll feeder, exit looping pit, online multi station hydraulic punching equipment, roll former with tooling, straightening device, flying cut-off machine, run out table and automatic stacking device. Loading coil car, auto hydraulic crop shearing and auto butt-welding equipment are optional for our equipment.
Features
1. Our guardrail roll forming machines are designed with Mitsubishi PLC and touchable screen for data processing and setting.
2. Roll forming speed is up to 10-20 meter per minute.

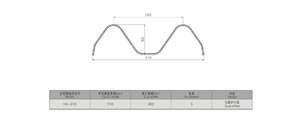

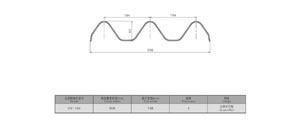

| Model | Cover width (mm) | Coil width (mm) | Thickness | Usage |
| HV-194 | 506 | 748 | 4 | Guard Rail |
| HV-310 | 310 | 482 | 3 | Guard Rail |
| (1) Suitable Material | Hot Rolled Steel |
| (2) Material Width | 482mm |
| (3) Material Thickness | 2.7 - 3.5 mm |
Roll Forming Machinery Company is experienced guardrail roll forming machine manufacturer based in China. Our primarily products include roll forming machines, double level roll forming machines, steel pipe forming mill, cut to length line, slitting line, stacker and filming machines, and so on. These products have been CE certified, and exported to Middle East, Africa, Europe, North America and South America, and other countries and regions.
If you are in need of metal forming machine, we welcome you to contact us at Roll Forming Machinery Company. We look forward to working with you.
