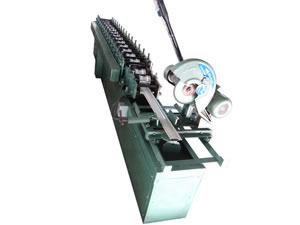

Roller Shutter Door Forming Line
Roll Forming Machine Roll Forming Machine Roll Forming Machine Roll Forming Machine
Roll Forming Machine

Roller Shutter Door Forming Line

Brief Introduction
High strength and closely welded plate, gear and chain transmission, AC motor driving and transducer which adjusts the production speed are installed in this roller shutter door forming line, which is the core equipment in a production line. Extra fine steel structure, heat treatment and ground finish are adopted in the shaft of this roller. The roller adopts professional German software design, CNC processing and the surface of the roller is treated by chrome plate and enjoys a long service life.

List of Components
Decoiler 1set
Guarding device1set
Roll former 1set
Automatic saw cutting device1set
Un-powered support table 1set
Electric control system 1set
Spare part and special tool 1set
Technical Parameters
Raw material Q235
Yield strength 235Mpa
Thickness0.4 - 1.0mm
Inner Diameter of Coil Ф508±20mm
Outer Diameter of Coil ≤Ф1200mm
Coil Weight≤1T
Roll forming speed10M/minute (Not including Cutting Time)
Tolerance ±2mm
Power requirement 380V±10% 50-60HZ (according to your request)

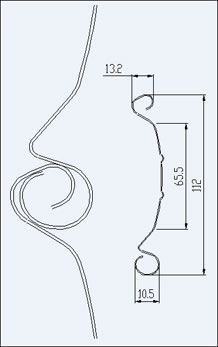

Profile Drawing
Roll Forming Machine

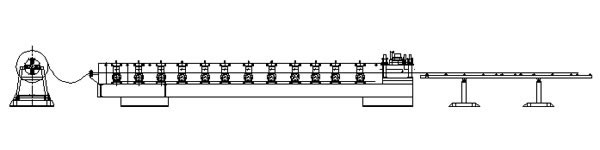

Layout Drawing
Roll Forming Machine

Working Flow
Decoiling → Roll Forming → Cutting to Length → Plate
