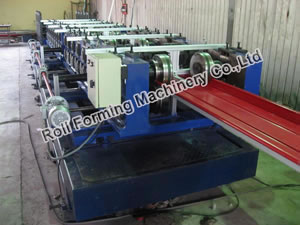

Standing seam roof roll forming machine, as a type of high speed forming machine, is also known as metal roofing machine. Roof roll forming machine includes hydraulic decoiler with breaking device, roll former with tooling, hydraulic cut-off machine, run out table and automatic stacking device, and more.
The product from roof roll forming machinery features pretty appearance, high reliability and durability, which can be widely used for the roof of garden, factory, hotel, and exhibition center, etc.
Features of Standing Seam Roof Roll Forming Machine
1. Our roof roll forming machines are designed with Mitsubishi PLC and touchable screen for data processing and setting.
2. Roll forming speed is up to 10-20 meter per minute.
| Model | Cover width (mm) | Coil width (mm) | Thickness of aluminum panel | Section inertia(cm4/m) | Section resistance(cm3/m) | Usage |
| HV-428 | 428/322 | 600/500 | 0.6 | 17.3 | 11.4 | Self-locked roof |
| 0.8 | 22.4 | 13.6 | ||||
| 1.0 | 28.6 | 16.1 |
| 1. Suitable Material | PPGI Coil |
| 2. Material Width | As per profile |
| 3. Material Thickness | 0.40 -- 0.80 mm |
Roll Forming Machinery Company is major standing seam roof roll forming machine manufacturer and supplier based in China. We also provide window frame forming machines, steel pipe forming machines, slitting line, cut to length line and so on. They are all CE certified.
For further information, please go to product page, or you can contact us directly. We would provide complete service to our valued customers.
