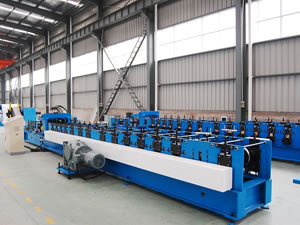

Purlin roll forming machine comes into three types, C purlin, Z purlin, and U purlin cold roll forming equipment. Metal purlin forming machine includes hydraulic decoiler with breaking device, leveler, hydraulic punching system, pre shearing system, roll former with tooling, hydraulic cut-off machine, run out table and automatic stacking device, and more.
Features
1. Our roll forming machines are designed with Mitsubishi PLC and touchable screen for data processing and setting.
2. Roll forming speed is up to 10-20 meter per minute.
| (1) Suitable Material | Galvanized Sheet |
| (2) Material Width | as per profile |
| (3) Material Thickness | 1.0 - 3.2 mm |
Parameters of C/Z Purlin Roll Forming Machine
Remark:
1. The size with "√" is company's standard configuration.
2. The size with "○" is optional configuration.
| NO. | a | b | c | t | L | Coil width |
| Z1 | 100 | 54 | 50 | 2~3 | 40 | 234 |
| Z2 | 120 | 64 | 60 | 2~3 | (Adjustable) | 274 |
| Z3 | 140 | 64 | 60 | 2~3 | (Adjustable) | 294 |
| Z4 | 160 | 74 | 70 | 2~3 | (Adjustable) | 334 |
| Z5 | 180 | 74 | 70 | 2~3 | (Adjustable) | 354 |
| Z6 | 200 | 74 | 70 | 2~3 | (Adjustable) | 374 |
| Z7 | 220 | 84 | 80 | 2~3 | (Adjustable) | 414 |
| Z8 | 240 | 84 | 80 | 2~3 | (Adjustable) | 434 |
Roll Forming Machinery Company is professional China-based purlin roll forming machine manufacturer and supplier. Our primarily products include double level roll forming machine, steel pipe forming mill. purlin roll forming machine, floor deck forming machine, cable tray forming machine, slitting line and filming machine, and so on. They are widely used to process sheet metal and form roof panels, shingle nails, glazed tiles, purlins, decks, downpipe and more, or for metal roll forming in steel shelves systems and highway guardrail systems, and so on.
We welcome you to contact us for further information on our roll forming machines or for purchase.
