Description

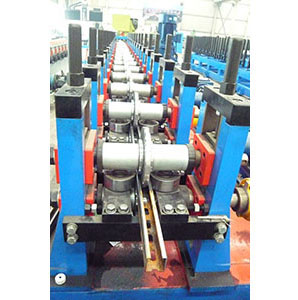

With years of experience, we design and manufacture this roll forming equipment which is specially used for cables. Our strut roll forming machine is mainly composed of decoiler, leveller, puncher, roll former and cutter. It works automatically to help customers save on costs.
Function and Structure
The roll forming machine features a column wall structure. It consists of roller stand, base, transmission, roll bending mold and other components. The machine base is made by welded steel with de-stressing treatment. We use good materials for roller shafts. The roll former will have the tuck’s head to straighten the profile in high precision. It is easy to operate and make adjustments.
Mold hardness after quenching is: HRC58-62 for improved wear resistance.
| No | Item | Parameter |
| 1 | Capacity | ≤2000 kg |
| 2 | Coil ID | Φ508 mm |
| 3 | Max. coil OD | Ф1300 mm |
| 4 | Max. speed | 15m/min |
| 5 | Power of motor | 3kw |
| 6 | Roller station material | QT 470. |
| 7 | Shaft material | 40 Cr |
| 8 | Diameter of horizontal roll shaft | φ60 mm |
| 9 | Motor | 15kw |
| 10 | Line speed | 15m/min. |
| 11 | Roller stand | 18+18 stands |
| 12 | Cutting tolerance/precision | ±2 mm |
| 13 | Max. panel length: | 6000 mm |
Working Process for Curtain Rail Roll Forming Machine
Loading material → Decoiling→ Leveling→ Roll forming → Cutting to length → Run-out table
