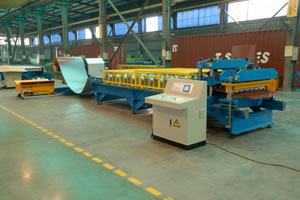

Roof tile roll forming machine, also called roof tile making machine, is specially designed to produce metal step tiles, which are widely used in commercial and residential buildings. Roof tile roll forming machine is composed of hydraulic decoiler with breaking device, roll former with tooling, hydraulic cut-off machine, run out table and automatic stacking device, and more.
Features
1. Our roof tile roll forming machines are designed with Mitsubishi PLC and touchable screen for data processing and setting.
2. Roll forming speed is up to 10-20 meter per minute.
| Model | Cover width (mm) | Coil width (mm) | Thickness |
| HV-183 | 1099.8 | 1250 | 0.5 |
| 0.6 |
| (1) Suitable Material | PPGI Coil |
| (2) Material Width | 914 / 1000 / 1220 / 1250 mm |
| (3) Material Thickness | 0.40 -- 0.80 mm |
Thanks for your visit to Roll Forming Machinery Company. As the professional roof tile forming machine manufacturer based in China, we mainly produce and market roof tile roll forming machines, double level forming machines, window frame roll forming machines, floor deck forming machines, guardrail forming machines, steel pipe welding lines, H beam welding lines, slitting lines, stacker and filming machines, and so on. Owing to high quality and reasonable price, as well as our perfect service, they have been exported to Middle East, Africa, Europe, North America and South America, and other countries and regions.
We welcome you to contact us for further information on our metal forming equipment, or other products that you may need!
