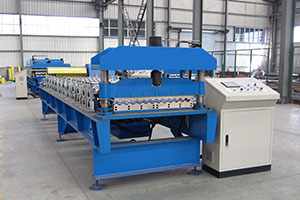

Corrugated Sheet Making Machine

Home » Products » Roll Forming Machine » Corrugated Sheet Making Machine

Description
The corrugated sheet making machine adopts special technology to produce corrugated wall and roof panels. It works automatically to help clients save on labor costs.

Technical Parameter

NO.	Name	Parameter	Remarks
1	Raw material	GI/Hot rolled sheet
2	Yield strength	350Mpa
3	Thickness	0.3-0.7mm
4	Coil I.D.	Ф508±20mm
5	Coil O.D.	≤Ф1500mm
6	Coil weight	≤10T
7	Production speed	About 10m/min.	Excluding cutting time
8	Tolerance	±2mm
9	Voltage	380/440V, 50/60Hz	Depends on clients' requirement

Working Process
Loading material → Decoiling→ Leveling→ Roll forming → Shearing → Run-out table
