Description

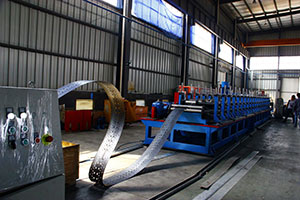

This machine is intended to produce a variety of cable trays according to clients’ requirements. It is PLC-controlled to work in a fully automated mode. Our machine can record the production quantity and measure the length with a high level of automation. It also has the functions of trouble display and emergency stop. All the working procedures can be controlled by a control panel. The width ranges from 100mm to 600mm.
| NO. | Name | Parameter | Remarks |
| 1 | Raw material | GI/Cold rolled sheet | |
| 2 | Yield strength | 235Mpa | |
| 3 | Thickness | 1-2mm | |
| 4 | Coil I.D. | Ф508±20mm | |
| 5 | Coil O.D. | ≤Ф1100mm | |
| 6 | Coil weight | ≤5T | |
| 7 | Production speed | About 6m/min. | Excluding cutting time |
| 8 | Tolerance | ±2mm | |
| 9 | Voltage | 380/440V, 50/60Hz | Depends on clients' requirement |
Working Process
Decoiling – Leveling – Feeding – Punching – Cutting – Roll forming – Plate to Support Table
