Description

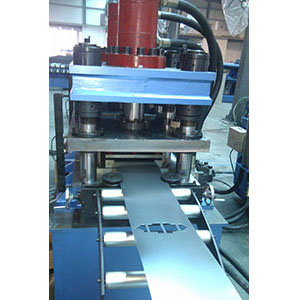

Our company has many years of experience and expertise in the design and manufacture of door frame roll forming machines. The roll forming machine is mainly composed of decoiler, puncher, roll former and cutter. It is highly efficient and cheap, thus making this equipment a popular choice in Africa. The finished products, such as door frame and window frame, are widely used in many modern house decorations. By using our machine, you can produce very safe and beautiful door frames.
| NO | Item | Para | Remark | |
| 1 | Suitable material | Type | GI plate, cold rolled sheet | |
| Thickness (mm) | 1 | |||
| Yield Strength (Mpa) | ≤235Mpa | |||
| Wt. of the Coil (t) | 3000KG | |||
| OD | Φ1300mm | |||
| ID | Φ508 mm | |||
| 2 | Material of rollers | Cr12 | ||
| 3 | Material of shaft | 40Cr | ||
| 3 | Forming speed (m/min.) | About 15M/min. | Not including cutting time | |
| 4 | Power source | AC380V, 50Hz, 3Phase | Depend on final design | |
Working Process
Loading→ Uncoiling → Guiding → Leveling → Length fixing → Cutting → Panel collecting → Getting off line
