Brief Introduction

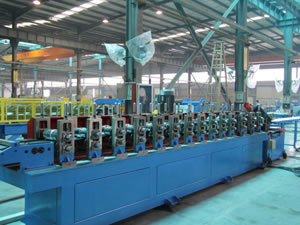

Two hydraulic stations are installed in the double coverage roof forming machine. The hydraulic system is developed for the multi-station punching machine. Dedicated hydraulic control module is adopted in the hydraulic machine which is featured by stable punching and low noise.
| Name | Model | Unit | Quantity |
| Decoiler | Hydraulic expansion | set | 2 |
| Leveling | Seven roller model | set | 1 |
| Servo-feeding device | Servo motor driven | set | 1 |
| Multi-station punching | Hydraulic driven | set | 1 |
| Roll former | Torii structure, double row | set | 1 |
| Cutter | Hydraulic driven | set | 2 |
| Final product support | Unpowered support | set | 1 |
| Hydraulic system | Specialized system | set | 1 |
| Electrical control system | Whole line control | set | 1 |
| Raw material | Aluminum plate |
| Yield strength | ≤300Mpa |
| Coil thickness | 0.8MM |
| Coil ID | ￠508 |
| Coil OD | ≤￠1200mm |
| Coil max weight | ≤5000 kg |
| Line working speed | 4-6m/min |
| Air source | >0.5Mpa |
| Power source of roll forming line | 575V, 60HZ, 3 Phase |

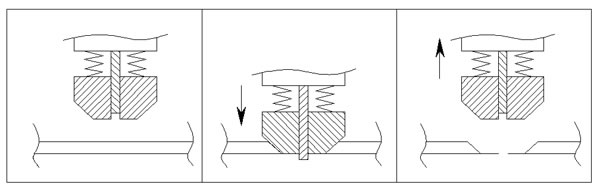

Workflow Decoiling → Leveling → Feeding → Multi-station punching (punching slots → notching) →Roll forming→ Cutting →Final product
