Brief Introduction

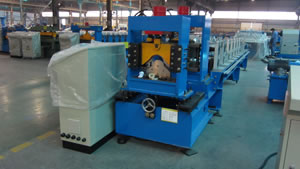

This roll forming machine is a type of facility specially designed for continuous rolling and the cold-forming of steel sheet. PLC control, AC frequency and speed adjustment technology are adopted in this machine, in which automatic continuous production is realized. Therefore, it is really a new type of energy-saving and highly effective production facility for steel structure.
| Name | Model/Name | Quantity | Technical Description |
| 1.Decoiler system | Passive decoiler | 1set | Cantilevered type passive decoiler |
| 2.Main forming system | Feeding Device | 1set | 1. Roller material: No.45 steel with hard chrome painted on surface.2. Type of the inner supporting structure of roller: column guide3. The system is driven by a planetary gear reducer motor, the back/forward rollers are driven by chain and part of the upper/lower rollers are driven by gear.4. Material of cutting blade: Cr12 (quenching treatment) |
| Roll forming system | 1set | ||
| Punching System | 1set | ||
| Post-cutting device | 1set | ||
| 3. Output system | Supporting Table | 1set | Supporting the finished panels and stacking them is manually operated |
| 4. Hydraulic system | 1set | Separate hydraulic station | |
| 5. Electric control system | 1set | This system is equipped with PLC Control, Automatic encoder cutting.Operation method: button AC frequency is used for adjusting the speed | |
| NO | Item | Para | Note | |
| 1 | Suitable material | Type | Colored steel sheet | |
| Thickness (mm) | 0.4-0.6 | |||
| Yield Strength (Mpa) | 230-300Mpa | |||
| Width (mm) | 395 | |||
| Weight of the Coil (t) | 3 | |||
| Outside Diameter | Φ1350mm | |||
| Inner Diameter | Φ508mm/Φ610mm | |||
| 2 | Material of rollers | No.45 chrome plate | ||
| 3 | Forming Speed (m/min) | 15-20 | Cutting time is not included | |
| 4 | Power Source | AC380V ,50 Hz, 3 Phase | The parameter is based on actual design | |
| 5 | Total power | About 8KW | The parameter is based on actual design | |

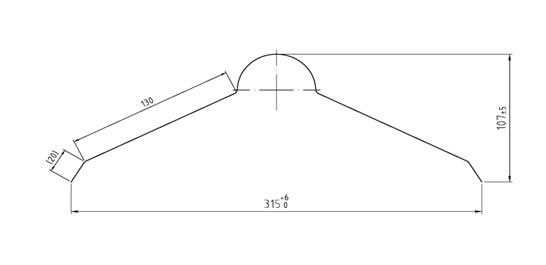

| 6 | Dimension (L×W×H, mm) | See to the profile | The parameter is based on actual design | |

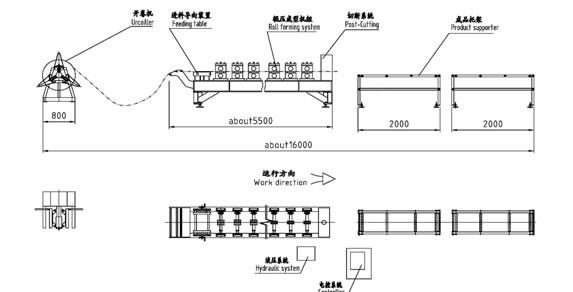

Workflow
Decoiling →Feeding →Roll forming →Punching →Cutting to length →Finished products
