Description

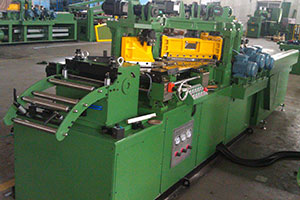

The cut-to-length line is used to turn metal coils into the even plate whose width is decided on you through procedure of decoiling, leveling, cut-to-length and shearing. After stacking is completed, the finished products are used to process all kinds of coated metal material, such as: cold carbon steel, hot-rolled carbon steel, silicon steel, tinplate and stainless steel. Our steel coil cutting machine is made up of feeder, decoiler, leveling machine, shearing machine, conveyor, stacker and so forth.
| NO. | Name | Parameter |
| 1 | Raw material | Cold steel, Hot steel, GI, PPGI. |
| 2 | Yield strength | σb≤500Mpa σS≤400Mpa |
| 3 | Thickness | 0.4-0.5 |
| 4 | Material width | ≤ 1225 mm |
| 5 | Coil I.D. | Ф508/Ф610 |
| 6 | Coil O.D. | ≤Ф1500mm |
| 7 | Coil weight | ≤8T |
| 8 | Cut to length | 300-20000mm |
| 9 | Tolerance of cutting | ≤±1/3000 mm |
| 10 | Tolerance of catercorner | ≤±1.5/3000 mm |
| 11 | Stacking weight | 5000kg |
Working Process
Coil loading → Decoiling → Guiding → Leveling → Scale measurement → Cutting to length→ Stacking
