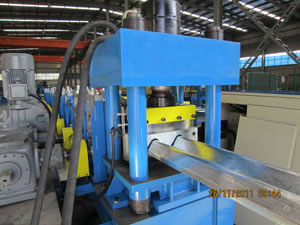

Highway Barrier Roll Forming Machine
Roll Forming Machine Roll Forming Machine Roll Forming Machine Roll Forming Machine
Roll Forming Machine

Highway Barrier Roll Forming Machine

This is a roll forming machine features non-stop punching with high efficiency.

1. Product introduction
Raw material Q235
Yield strength 235Mpa
Material thickness 3-4mm
Material width < 500mm
Coil ID Ф508±20mm
Coil OD ≤Ф1200mm
Coil capacity ≤5T

2. Main parameter of Highway Barrier Roll Forming Machine
Production speed 3-10M/MIN
Length tolerance ±2mm
Power 380V±10% 50-60HZ
Total power 90 KW

3. Working flow of Highway Barrier Roll Forming Machine
Decoiler →Leveling and guiding →Server motor feeding→ Punching →Roll forming →Cut off non-stop machine to length→ Finished
